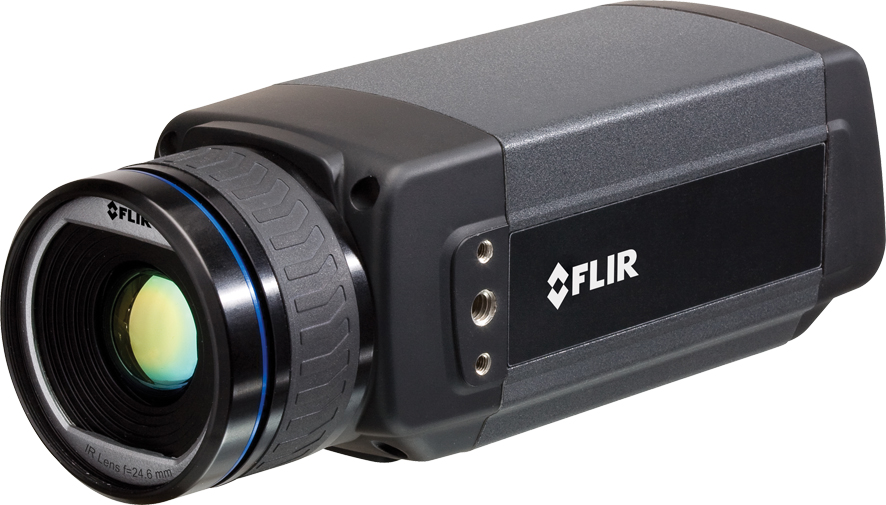

The FLIR A615 has features and functions that make it the natural choice for anyone who uses PC software to solve problems and needs 640 × 480 pixel resolution. Among its main features are GigE Vision and GenICam compliance, which makes it plug-and-play when used with software packages such as IMAQ Vision and Halcon.
Key Features:
- Affordable.
- GigE compliant.
- GenICam compliant.
- Trigg/synchronization/GPIO.
- 16-bit 640 × 480 pixel images at 50 Hz, signal, temperature linear, and radiometric.
- Windowing mode: 640 × 240 pixels at 100 Hz or 640 × 120 pixels at 200 Hz.
- Compliant with any software that supports GenICam, including National Instruments IMAQ Vision and Stemmers Common Vision Blox.
- Open and well-described TCP/IP protocol for control and set-up.
Typical Applications:
- High-end infrared machine vision that needs temperature measurement.
- Slag detection.
- Food processing.
- Electronics testing.
- Power resistor testing.
- Automotive.
Description
Technical Specifications:
| Imaging and optical data | |
| R resolution | 640 × 480 pixels |
| Thermal sensitivity/NETD | < 0.05°C @ +30°C (+86°F) / 50 mK |
| Field of view (FOV) | 15° × 11° (19° diagonal) |
| Minimum focus distance | 0.50 m (1.64 ft.) |
| Focal length | 41.3 mm (1.63 in.) |
| Spatial resolution (IFOV) | 0.41 mrad |
| Lens identification | Automatic |
| F-number | 1 |
| Image frequency | 50 Hz (100/200 Hz with windowing) |
| Focus | Automatic or manual (built in motor) |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Spectral range | 7.5–14 µm |
| Detector pitch | 17 µm |
| Detector time constant | Typical 8 ms |
| Measurement | |
| Object temperature range | –40°C to +150°C (–40°F to +302°F) 100 to +650°C (+212 to +1202°F) 300 to +2000°C (+572 to +3632°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Measurement Analysis | |
| Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics transmission correction | Automatic, based on signals from internal sensors |
| Emissivity correction | Variable from 0.01 to 1.0 |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| External optics/windows correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement corrections | Global object parameters |
