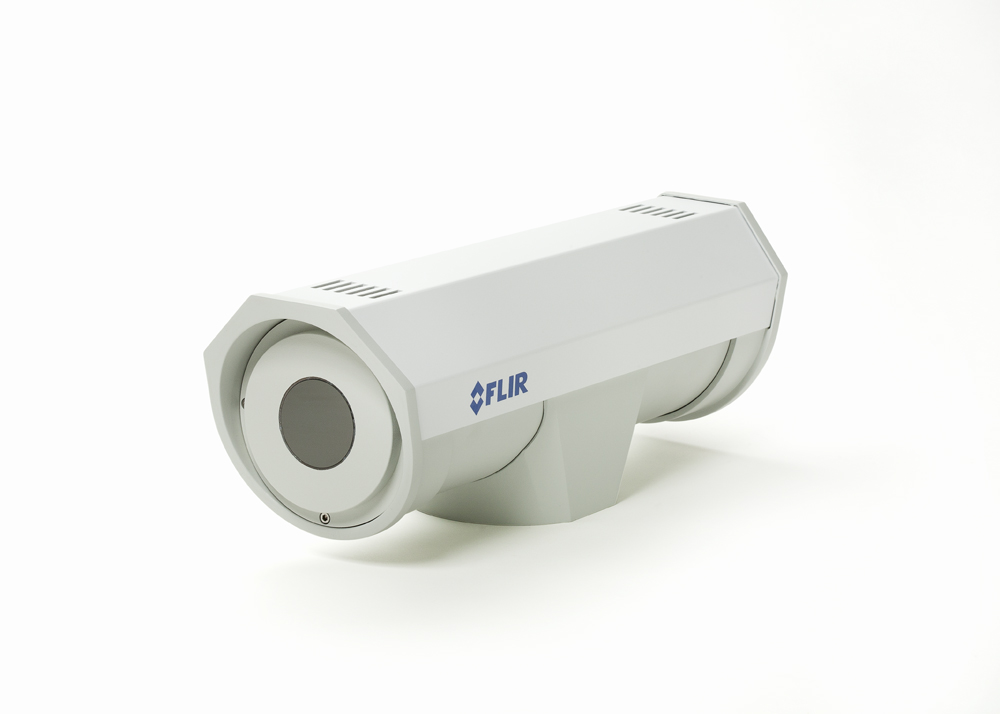

FLIR A310 f (30 Hz) w/25° Lens also available 6°, 15°, 45°, 90°

The main purpose of the housing on the FLIR A310f is to increase the environmental specification of the standard FLIR A310 to IP66 without affecting any of the features available in the camera itself.
The built-in FLIR A310 camera offers an affordable and accurate temperature measurement solution for anyone who needs to solve problems that need built in “smartness” such as analysis, alarm functionality, and autonomous communication using standard protocols. The FLIR A310 camera also has all the necessary features and functions to build distributed single- or multi-camera solutions utilizing standard Ethernet hardware and software protocols.
The FLIR A310 camera also has built in support to connect to industrial control equipment such as PLCs, and allows for sharing of analysis and alarm results and simple control using the Ethernet/IP and Modbus TCP field bus protocols.

Key features:
  • Encapsulation to IP66.
  • Support for the EthernetIP field bus protocol (analyze, alarm, and simple camera control).
  • Support for the Modbus TCP field bus protocol (analyze, alarm, and simple camera control).
  • Built-in extensive analysis functionality.
  • Extensive alarm functionality, as a function of analysis and more.
  • On schedule: file sending (FTP) or e-mail (SMTP) of analysis results or images.
  • On alarms: file sending (FTP) or e-mail (SMTP) of analysis results or images.
  • MPEG-4 streaming.
  • PoE (Power over Ethernet).
  • Built-in web server.
  • General purpose I/O.
  • 100 Mbps Ethernet (100 m cable, wireless, fiber, etc.).
  • Synchronization through SNTP.
  • Composite video output.
  • Multi-camera utility software: FLIR IP Config and FLIR IR Monitor included.
  • Open and well-described TCP/IP protocol for control and set-up.
  • 16-bit 320 × 240 pixel images at 7–8 Hz, radiometric

Typical applications:

  • Safety with temperature alarms (multi-camera applications), fire prevention, critical vessel monitoring, and power utility asset management.
  • Volume-oriented industrial control (multi-camera installation is possible).
SKU: 61201-1101 Categories: , , ,

Description

Technical Specifications:

Imaging and optical data
IR resolution 320 × 240 pixels
Thermal sensitivity/NETD < 0.05°C @ +30°C (+86°F) / 50 mK
Field of view (FOV) 6° × 4.5°
Minimum focus distance 4 m (13.11 ft.)
Focal length 76 mm (3.0 in.)
Spatial resolution (IFOV) 0.33 mrad
Lens identification Automatic
F-number 1.3
Image frequency 30 Hz
Focus Automatic or manual (built in motor)
Zoom 1–8× continuous, digital, interpolating zooming on images
Detector data
Detector type Focal plane array (FPA), uncooled microbolometer
Spectral range 7.5–13 µm
Detector pitch 25 µm
Detector time constant Typical 12 ms
Measurement
Object temperature range –20 to +120°C (–4 to +248°F)
0 to +350°C (+32 to +662°F)
Accuracy ±4°C (±7.2°F) or ±4% of reading
Measurement analysis
Spotmeter 10 (with no image streaming)
Area 10 boxes with max./min./average/position (7 if FLIR Sensors Manager or other image streaming software is used)
Isotherm 1 with above/below/interval
Measurement option Measurement Mask FilterSchedule response: File sending (ftp), email (SMTP)
Difference temperature Delta temperature between measurement functions or reference temperature
Reference temperature Manually set or captured from any measurement function
Atmospheric transmission correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correction Automatic, based on signals from internal sensors
Emissivity correction Variable from 0.01 to 1.0
Reflected apparent temperature correction Automatic, based on input of reflected temperature
External optics/windows correction Automatic, based on input of optics/window transmission and temperature
Measurement corrections Global and individual object parameters
Alarm
Alarm functions 6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer
Alarm output Digital Out, log, store image, file sending (ftp), email (SMTP), notification
