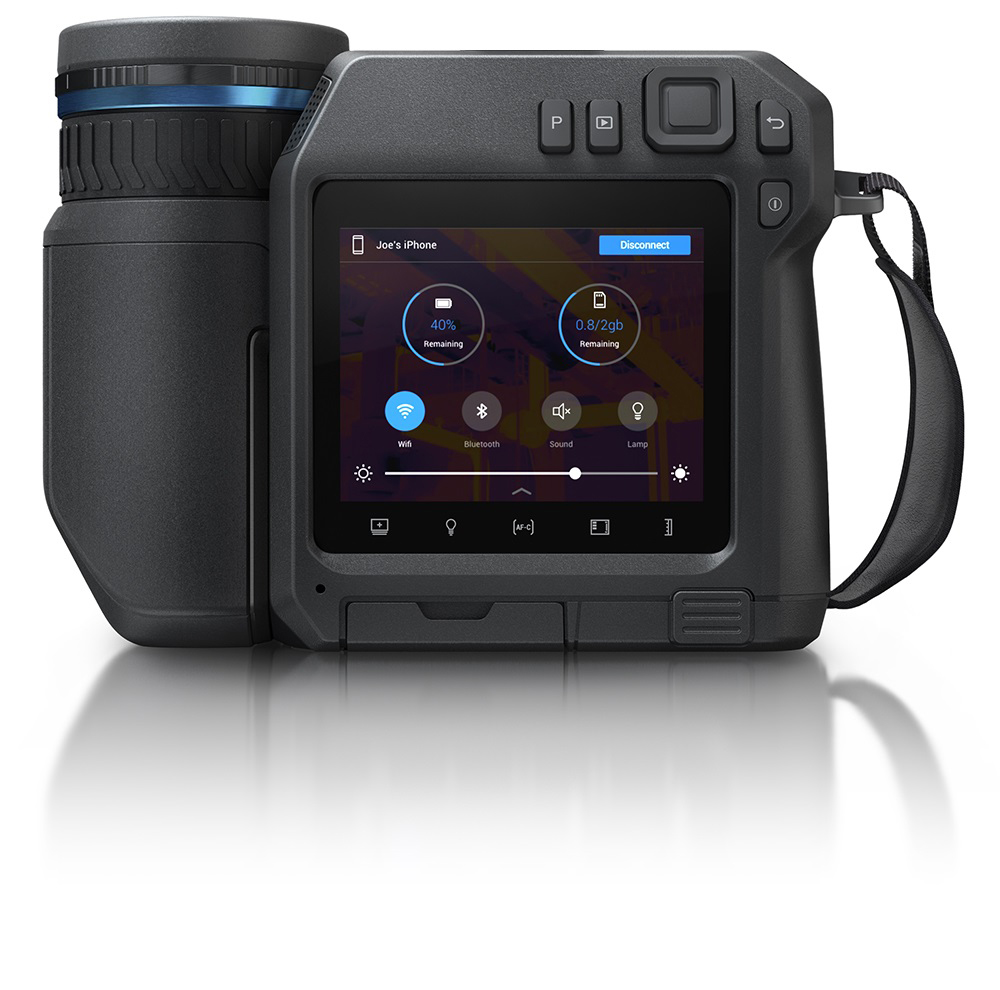

FLIR T560-EST w/24° Lens, 640×480, 15°C to 45°C with Dual Streaming and Autoscreen Mode Options Also available with 42° Lens

The FLIR T560-EST handheld thermal camera is a non-contact screening tool that serves as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. Battery-powered and featuring an integrated touchscreen display, the T560-EST sets up quickly and easily for operation in temporary or mobile screening settings. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. A 640 × 480 pixel detector offers the highest thermal resolution in this line of handheld FLIR EST cameras, for superior measurement accuracy. Compatibility with FLIR Screen-EST Desktop software makes this camera a good fit for permanent installations as well.

Key Features:

  • EASY SET-UP AND OPERATION Begin screening quickly with limited ramp-up time, simple video connectivity, and choice of >4-hour battery or external power.

  • FAST, ACCURATE SCREENING Optimal screening accuracy with automatic ambient drift compensation, visual pass/fail graphic indicators, and audible alarms.

  • MAINTAIN SAFETY AND PRIVACY On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

SKU: 89002-0302 Categories: , , ,

Description

Technical Specifications:

Imaging and optical data
Infrared resolution 640 × 480 pixels
UltraMax (super-resolution)1 Yes
NETD <40 mK @ 30°C (86°F)
Field of view 24° × 18°
Minimum focus distance 0.15 m (0.49 ft)
Minimum focus distance with MSX 0.5 m (1.64 ft)
Focal length 17 mm (0.67 in)
Spatial resolution (IFOV) 0.7 mrad/pixel
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous LDM
One-shot LDM
One-shot contrast
Manual
Field of view match Yes
Digital zoom 1–8× continuous
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 12 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2) 400
Screen size 4 in
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 04:03:00
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 2
Viewfinder No
Image adjustment Automatic
Automatic maximum
Automatic minimum
Manual
Image presentation modes
Infrared image Yes
Visual image Yes
MSX Yes
Picture in picture Resizable and movable
Gallery Yes
Measurement
Camera temperature range 15 to 45°C (59 to 113°F)Accuracy ±0.3°C (±0.5°F) when used in Screening modeThe camera will provide contrast from -20 to 120 °C (–4 to 248°F), but no temperature information will be provided
Alarm
Color alarm (isotherm) Above
Measurement function alarm Audible/visual alarms (above/below) on any selected measurement function
Sampling average mode Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperatureAccuracy (drift): ±0.3°C (±0.5°F)2
Inspection mode
FLIR Inspection route Enabled in the camera
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Automatic maximum/minimum markers within area
Measurement presets No measurements
Center spot
Hot spot
Cold spot
User preset 1
User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes, variable from 0.01 to 1.0 or selected from materials list
Measurement corrections Yes
External optics/windows correction Yes
Alarm
Color alarm (isotherm) Above
Below
Interval
Condensation (moisture/humidity/dewpoint)
Insulation
Measurement function alarm Audible/visual alarms (above/below) on any selected measurement function
