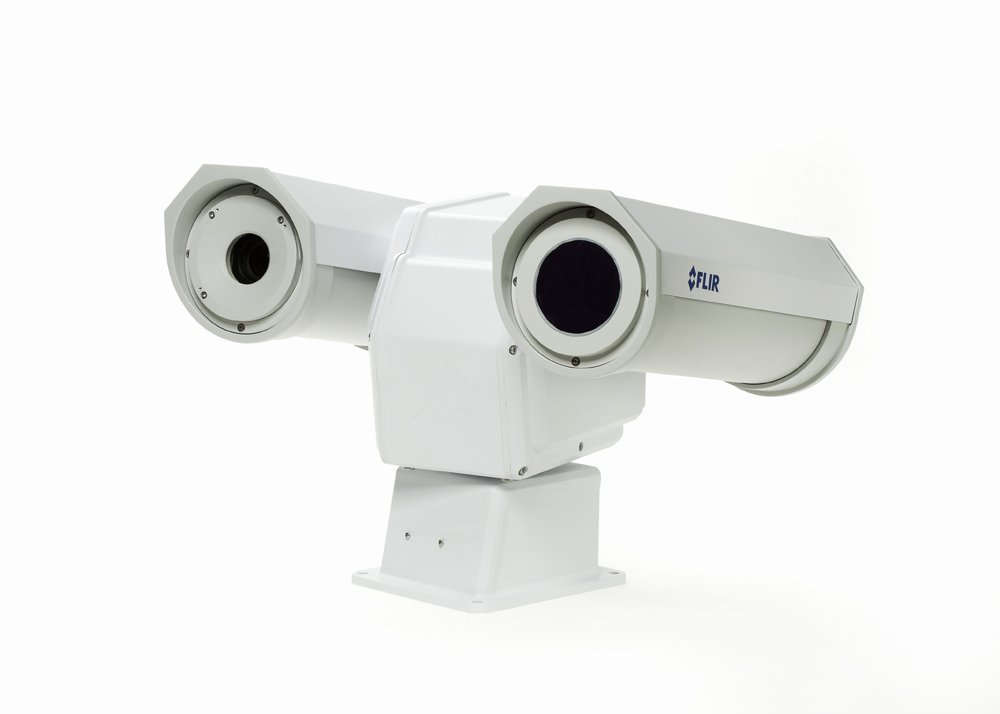

The FLIR A310pt Pan & Tilt is an affordable solution for anyone who needs to solve problems that require built in “smartness” such as analysis and alarm functionality. The FLIR A310pt Pan & Tilt has all the necessary features and functions to build distributed single- or multi-camera solutions to cover large areas to monitor such as in coal pile monitoring and sub-station monitoring using standard Ethernet hardware and software protocols.
The FLIR A310pt precision pan/tilt mechanism gives operators accurate pointing control while providing fully programmable scan patterns, radar slew-to-cue, and slew-to-alarm functionality.
Multi-sensor configurations also include a day/night 36× zoom color CCD camera on the same pan/tilt package.
Key features:
- Built-in extensive analysis functionality.
- Extensive alarm functionality, as a function of analysis and more.
- H.264, MPEG-4, and MJPEG streaming.
- Built-in web server.
- 100 Mbps Ethernet (100 m cable, wireless, fiber, etc.).
- Composite video output.
- Precise pan/tilt mechanism.
- Daylight camera.
- IP66 rated.
- IP control: FLIR PT series cameras can be integrated into any existing TCP/IP network and controlled using a personal computer.
- Serial control interface, use Pelco D or Bosch commands over RS-232, RS-422, or RS-485 to remotely control the FLIR A310 pt.
- Multi-camera software: FLIR Sensors Manager allows users to manage and control a FLIR PT series camera in a TCP/IP network.
Description
Technical Specifications:
| Imaging and optical data | |
| IR resolution | 320 × 240 pixels |
| Thermal sensitivity/NETD | < 0.05°C @ +30°C (+86°F) / 50 mK |
| Field of view (FOV) | 6° × 4.5° |
| Minimum focus distance | 4 m (13.11 ft.) |
| Focal length | 76 mm (3.0 in.) |
| Spatial resolution (IFOV) | 0.33 mrad |
| Lens identification | Automatic |
| F-number | 1.3 |
| Image frequency | 9 Hz |
| Focus | Automatic or manual (built in motor) |
| Zoom | 1–8× continuous, digital, interpolating zooming on images |
| Detector data | |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Spectral range | 7.5–13 µm |
| Detector pitch | 25 µm |
| Detector time constant | Typical 12 ms |
| Measurement | |
| Object temperature range | –20 to +120°C (–4 to +248°F) 0 to +350°C (+32 to +662°F) |
| Accuracy | ±4°C (±7.2°F) or ±4% of reading |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 10 boxes with max./min./average/position (7 if FLIR Sensors Manager is used) |
| Isotherm | 1 with above/below/interval |
| Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics transmission correction | Automatic, based on signals from internal sensors |
| Emissivity correction | Variable from 0.01 to 1.0 |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| External optics/windows correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement corrections | Global and individual object parameters |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| External optics/windows correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement corrections | Global and individual object parameters |
| Alarm | |
| Alarm functions | 6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer |
