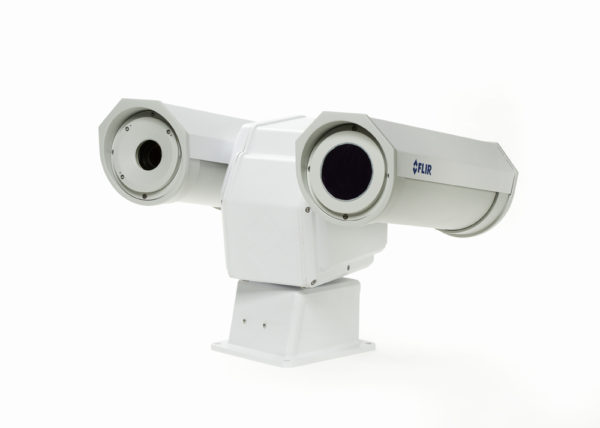

FLIR A310 pt (30 Hz) PAL w/6° Lens also available 15°, 25°, 45°, 90°

The FLIR A310pt Pan & Tilt is an affordable solution for anyone who needs to solve problems that require built in “smartness” such as analysis and alarm functionality. The FLIR A310pt Pan & Tilt has all the necessary features and functions to build distributed single- or multi-camera solutions to cover large areas to monitor such as in coal pile monitoring and sub-station monitoring using standard Ethernet hardware and software protocols.
The FLIR A310pt precision pan/tilt mechanism gives operators accurate pointing control while providing fully programmable scan patterns, radar slew-to-cue, and slew-to-alarm functionality.
Multi-sensor configurations also include a day/night 36× zoom color CCD camera on the same pan/tilt package.

Key features:

  • Built-in extensive analysis functionality.
  • Extensive alarm functionality, as a function of analysis and more.
  • H.264, MPEG-4, and MJPEG streaming.
  • Built-in web server.
  • 100 Mbps Ethernet (100 m cable, wireless, fiber, etc.).
  • Composite video output.
  • Precise pan/tilt mechanism.
  • Daylight camera.
  • IP66 rated.
  • IP control: FLIR PT series cameras can be integrated into any existing TCP/IP network and controlled using a personal computer.
  • Serial control interface, use Pelco D or Bosch commands over RS-232, RS-422, or RS-485 to remotely control the FLIR A310 pt.
  • Multi-camera software: FLIR Sensors Manager allows users to manage and control a FLIR PT series camera in a TCP/IP network.
SKU: 61001-1101 Categories: , , ,

Description

Technical Specifications:

Imaging and optical data
IR resolution 320 × 240 pixels
Thermal sensitivity/NETD < 0.05°C @ +30°C (+86°F) / 50 mK
Field of view (FOV) 6° × 4.5°
Minimum focus distance 4 m (13.11 ft.)
Focal length 76 mm (3.0 in.)
Spatial resolution (IFOV) 0.33 mrad
Lens identification Automatic
F-number 1.3
Image frequency 30 Hz
Focus Automatic or manual (built in motor)
Zoom 1–8× continuous, digital, interpolating zooming on images
Detector data
Detector type Focal plane array (FPA), uncooled microbolometer
Spectral range 7.5–13 µm
Detector pitch 25 µm
Detector time constant Typical 12 ms
Measurement
Object temperature range –20 to +120°C (–4 to +248°F)
0 to +350°C (+32 to +662°F)
Accuracy ±4°C (±7.2°F) or ±4% of reading
Measurement analysis
Spotmeter 10
Area 10 boxes with max./min./average/position (7 if FLIR Sensors Manager is used)
Isotherm 1 with above/below/interval
Atmospheric transmission correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correction Automatic, based on signals from internal sensors
Emissivity correction Variable from 0.01 to 1.0
Reflected apparent temperature correction Automatic, based on input of reflected temperature
External optics/windows correction Automatic, based on input of optics/window transmission and temperature
Measurement corrections Global and individual object parameters
Reflected apparent temperature correction Automatic, based on input of reflected temperature
External optics/windows correction Automatic, based on input of optics/window transmission and temperature
Measurement corrections Global and individual object parameters
Alarm
Alarm functions 6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer
