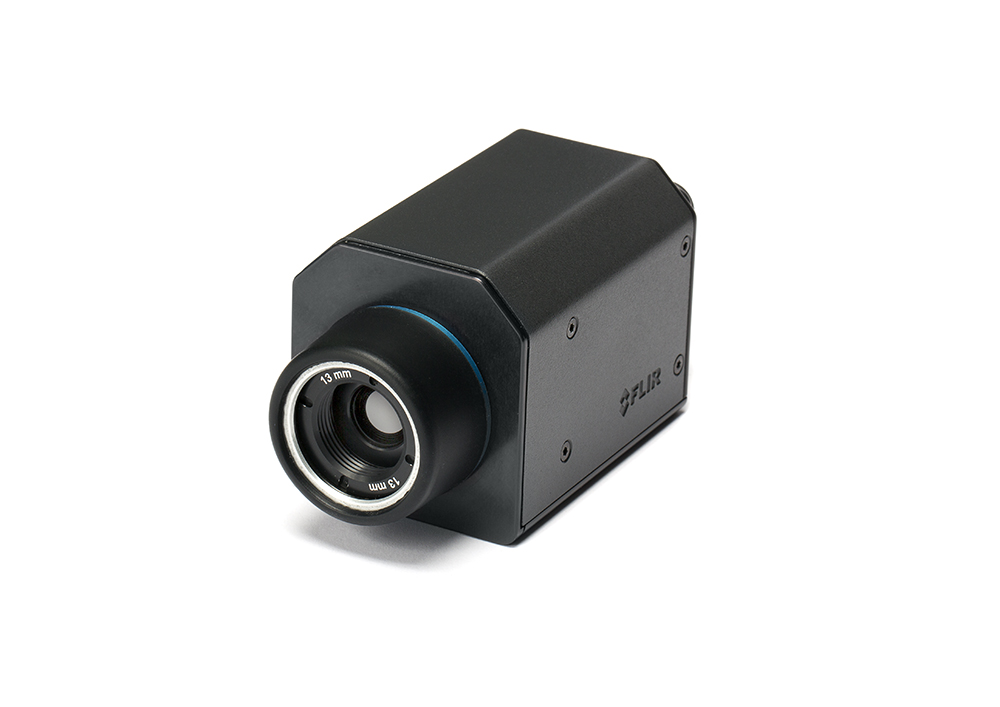

The FLIR A35 has features and functions that make it the natural choice for anyone who uses PC software to solve problems and for whom 370 × 296 pixel resolution is sufficient.
Among its main features are GigE Vision and GenICam compliance, which makes it plug-and-play when used with software packages such as IMAQ Vision and Halcon.
Key Features:
- Very affordable.
- Compact
- GigE Vision and GenICam compliant.
- GigE Vision lockable connector.
- PoE (power over Ethernet).
- 8-bit 370 × 296 pixel images streamed at 30 Hz, signal linear
- 14-bit 370 × 296 pixel images streamed at 30 Hz, signal and temperature linear
- Synchronization between cameras possible.
- 1x+1x GPIO.
- Compliant with any software that supports GenICam, including National Instruments IMAQ Vision, Stemmers Common Vision Blox, and COGNEX Vision Pro.
Typical applications:
- Automation and thermal machine vision.
- Entry level “high-speed” R&D.
Description
Technical Specifications:
| Imaging and optical data | |
| IR resolution | 320 × 256 pixels |
| Thermal sensitivity/NETD | < 0.05°C @ +30°C (+86°F) / 50 mK |
| Field of view (FOV) | 69° × 56° |
| Minimum focus distance | 3.2 cm (1.6 in.) |
| Focal length | 9 mm (0.35 in.) |
| Spatial resolution (IFOV) | 3.8 mrad |
| F-number | 1.4 |
| Image frequency | 30 Hz |
| Focus | Fixed |
| Detector data | |
| Detector type | Focal plane array (FPA), uncooled VOX microbolometer |
| Spectral range | 7.5–13 µm |
| Detector pitch | 34 µm |
| Detector time constant | Typical 12 ms |
| Measurement | |
| Object temperature range | –25 to +135°C (–13 to 275°F) –40 to +550°C (–40 to +1022°F) |
| Accuracy | ±5°C (±9°F) or ±5% of reading |
| Measurement analysis | |
| Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics transmission correction | Automatic, based on signals from internal sensors |
| Emissivity correction | Variable from 0.5 to 1.0 |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| External optics/windows correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement corrections | Global object parameters |
