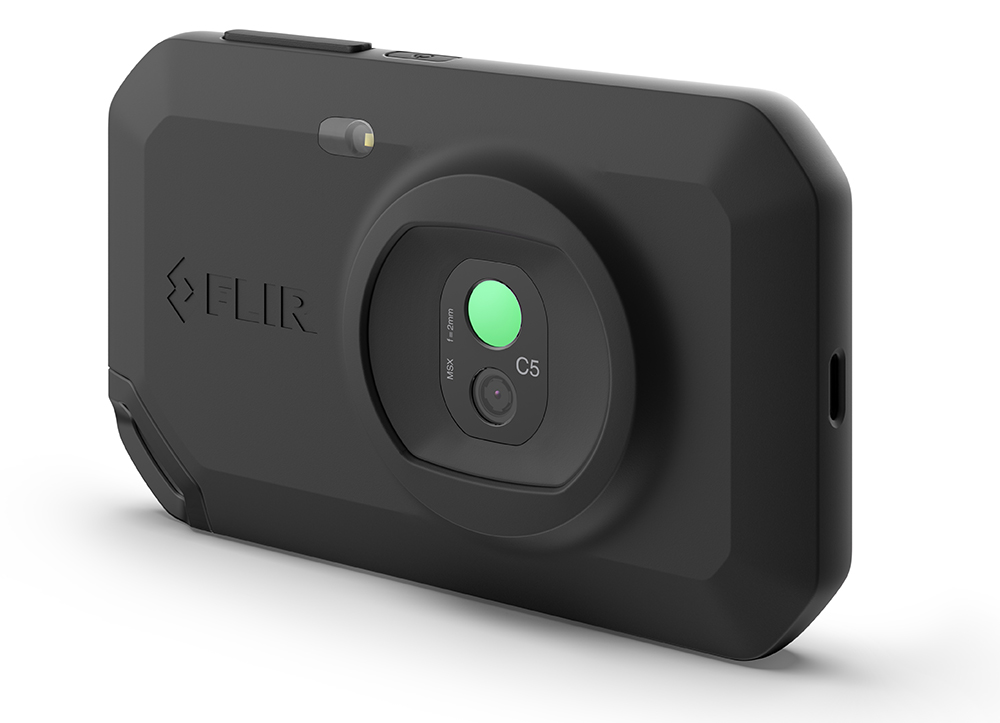

FLIR C5 Compact Professional Thermal Camera w/MSX and WiFi 160 x 120 Resolution/9Hz

Posted by Rachael Browning

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Key Features:

  • FIND AND TROUBLESHOOT Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span
  • DOCUMENT AND SHARE Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
  • RUGGED, RELIABLE, COMPACT Take the pocket-portable C5 with you to every job – it’s IP54 rated for protection against water and dust and designed to withstand a 2 m drop
SKU: 89401-0202 Categories: ,

Description

Technical Specifications

Imaging and optical data
IR resolution 160 × 120 pixels
Thermal sensitivity/NETD < 70 mK
Field of view (FOV) 54° × 42°
Minimum focus distance Thermal: 0.1 m (0.32 ft)
MSX: 0.3 m (0.98 ft)
Spatial resolution (IFOV) 6.3 mrad/pixel
F-number 1.1
Image frequency 8.7 Hz
Focus Focus free
Digital zoom Yes, zoom pinch, 1–4× continuous
Detector data
Detector type Focal plane array, uncooled microbolometer
Spectral range 8–14 µm
Detector pitch 12 μm
Image presentation
Display resolution 640 × 480 pixels
Screen size 3.5 in
Aspect ratio 04:03:00
Auto orientation Yes
Touch screen Yes, capacitive
Display technology IPS
Image adjustment Automatic level and span
Manual level and span
1-Touch level and span
Image modes Infrared image
Visual image
MSX
Picture in picture (IR area on visual image)
Gallery Yes, incl. thumbnails and custom folder structure
Measurement
Object temperature range –20 to 400°C (–4 to 752°F)
Accuracy at ambient temp. 10 to 35°C (50 to 95°F) and object temp. above 0°C (32°F) 0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
100 to 400°C (212 to 752°F): ±3%
