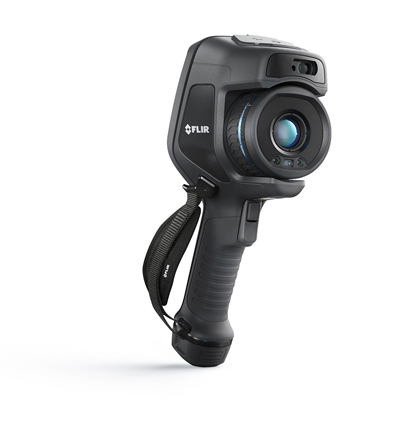

The FLIR E75 has the sensitivity and resolution needed to diagnose problems and find hidden deficiencies, even from a distance. The 320 x 240 true native resolution offers more than 76,000 points of temperature measurement and produces crisp, vibrant imagery, while interchangeable lenses offer complete coverage of near and distant targets.
Description
Technical Specifications
| Imaging and optical data | |
| Infrared resolution | 320 × 240 pixels |
| UltraMax (super-resolution) | Yes |
| NETD | <50 mK @ +30°C (+86°F) |
| Field of view | 14° × 10° |
| Minimum focus distance | 1.0 m (3.28 ft.) |
| Minimum focus distance with MSX | 1.0 m (3.28 ft.) |
| Focal length | 29 mm (1.41 in.) |
| Spatial resolution (IFOV) | 0.75 mrad/pixel |
| Available extra lenses | 42° (AutoCal) 24° (AutoCal) |
| Lens identification | Automatic |
| f number | 1.5 |
| Image frequency | 30 Hz |
| Focus | Continuous LDM One-shot LDM One-shot contrast Manual |
| Field of view match | Yes |
| Digital zoom | 1–4× continuous |
| Detector data | |
| Focal plane array/spectral range | Uncooled microbolometer/7.5–14 µm |
| Detector pitch | 17 µm |
| Image presentation | |
| Resolution | 640 × 480 pixels (VGA) |
| Surface brightness (cd/m2) | 400 |
| Screen size | 4 in. |
| Viewing angle | 80° |
| Color depth (bits) | 24 |
| Aspect ratio | 04:03:00 |
| Auto-rotation | Yes |
| Touchscreen | Optically bonded PCAP |
| Display technology | IPS |
| Cover glass material | Dragontrail® |
| Programmable buttons | 1 |
| Viewfinder | No |
| Image adjustment | Automatic Automatic maximum Automatic minimum Manual |
| Image presentation modes | |
| Infrared image | Yes |
| Visual image | Yes |
| Thermal fusion | No |
| MSX | Yes |
| Picture in Picture | Resizable and movable |
| Gallery | Yes |
| Measurement | |
| Camera temperature range | –20 to 120°C (–4 to 248°F) 0 to 650°C (32 to 1202°F) Optional 300 to 1000°C (572 to 1832°F) |
| Object temperature range and accuracy (for ambient temp. 15 to 35°C (59 to 95°F) | Range –20 to 120°C (–4 to 248°F): –20 to 100°C (–4 to 212°F): ±2°C (±3.6°F) 100 to 120°C (212 to 248°F): ±2% Range 0 to 650°C (32 to 1202°F): 0 to 100°C (32 to 212°F): ±2°C (±3.6°F) 100 to 650°C (212 to 1202°F): ±2% Optional Range 300 to 1000°C (572 to 1832°F): ±2% |
| Screening mode | |
| Sampling average mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperatureAccuracy (drift): ±0.3°C (±0.5°F)1 |
| Measurement analysis | |
| Spotmeter | 3 in live mode |
| Area | 1 in live mode |
| Automatic hot/cold detection | Auto-maximum/minimum markers within area |
| Measurement presets | No measurements Center spot Hot spot Cold spot User preset 1 User preset 2 |
| Difference temperature | Yes |
| Reference temperature | Yes |
| Emissivity correction | Yes: variable from 0.01 to 1.0 or selected from materials list |
| Measurement corrections | Yes |
| External optics/windows correction | Yes |
