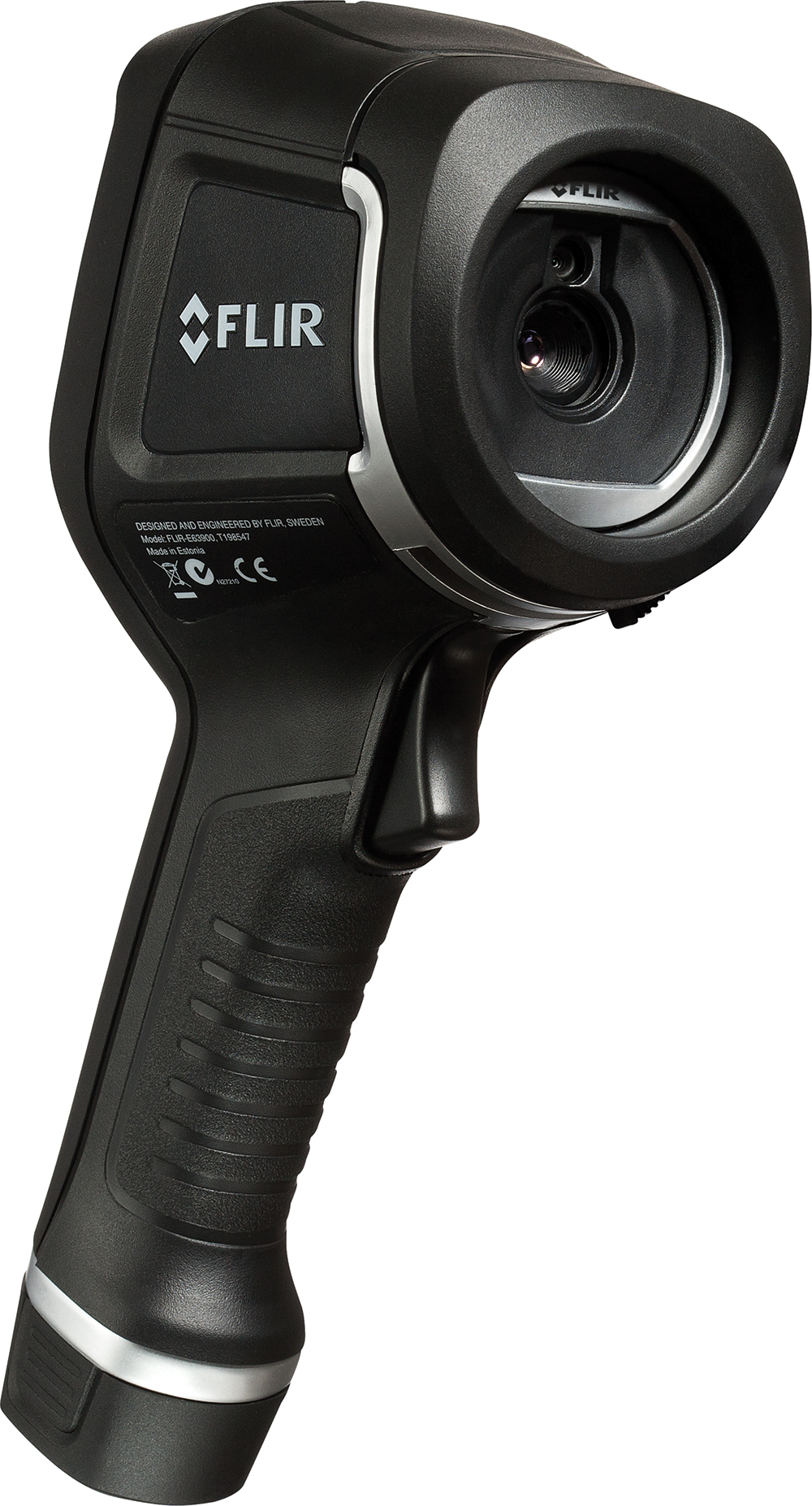

FLIR E8xt IR Camera w/MSX and WiFi 320 x 240 Resolution/9Hz

Posted by Rachael Browning

The FLIR Ex series cameras are point-and-shoot infrared cameras that give you access to the infrared world. A FLIR Ex series camera is an affordable replacement for an infrared thermometer, providing a thermal image with temperature information in every pixel. The new MSX and visual formats make the cameras incomparably easy to use.
The FLIR Ex series cameras are user-friendly, compact, and rugged, for use in harsh environments. The wide field of view makes them the perfect choice for building applications.
Key Features:
  • Easy to use: The FLIR Ex series cameras are fully automatic and focus-free with an intuitive interface for simple measurements in thermal, visual, or MSX mode.
  • Compact and rugged: The FLIR Ex series cameras’ low weight of 0.575 kg and the accessory belt pouch make them easy to bring along at all times. Their rugged design can withstand a 2 m drop test, and ensures reliability, even in harsh environments.
  • Ground breaking affordability: The FLIR Ex series cameras are the most affordable infrared cameras on the market.
SKU: 63908-0905 Categories: ,

Description

Technical Specifications:

Imaging and optical data
IR resolution 320 × 1240 pixels
Thermal sensitivity/NETD < 0.05°C (0.09°F) / < 50 mK
Field of view (FOV) 45° × 34°
Minimum focus distance 0.5 m (1.6 ft.)
Spatial resolution (IFOV) 2.6 mrad
F-number 1.5
Image frequency 9 Hz
Focus Focus free
Detector data
Detector type Focal plane array, uncooled microbolometer
Spectral range 7.5-13μm
Image presentation
Display 3.0 in. 320 × 240 color LCD
Image adjustment Automatic/Manual
Image modes Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
Multi Spectral Dynamic Imaging (MSX) IR image with enhanced detail presentation
Picture-in-Picture IR area on visual image
Measurement
Camera temperature range –20 to 250°C (–4 to 482°F)
10 to 550°C (50 to 1022°F)
Object temperature range and accuracy (for ambient temp. 10 to 35°C (50 to 95°F) and object temp. above 0°C (32°F)) Range –20 to 250°C (–4 to 482°F):
   0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
   100 to 250°C (212 to 482°F): ±2%
Range 10 to 550°C (50 to 1022°F):
   10 to 100°C (50 to 212°F): ±3°C (±5.4°F)
   100 to 550°C (212 to 1022°F): ±3%
Measurement Analysis
Spotmeter Center spot
Area Box with max./min.
Isotherm Above alarm, Below alarm
Emissivity correction Variable from 0.1 to 1.0
Emissivity table Emissivity table of predefined materials
Reflected apparent temperature correction Automatic, based on input of reflected temperature
