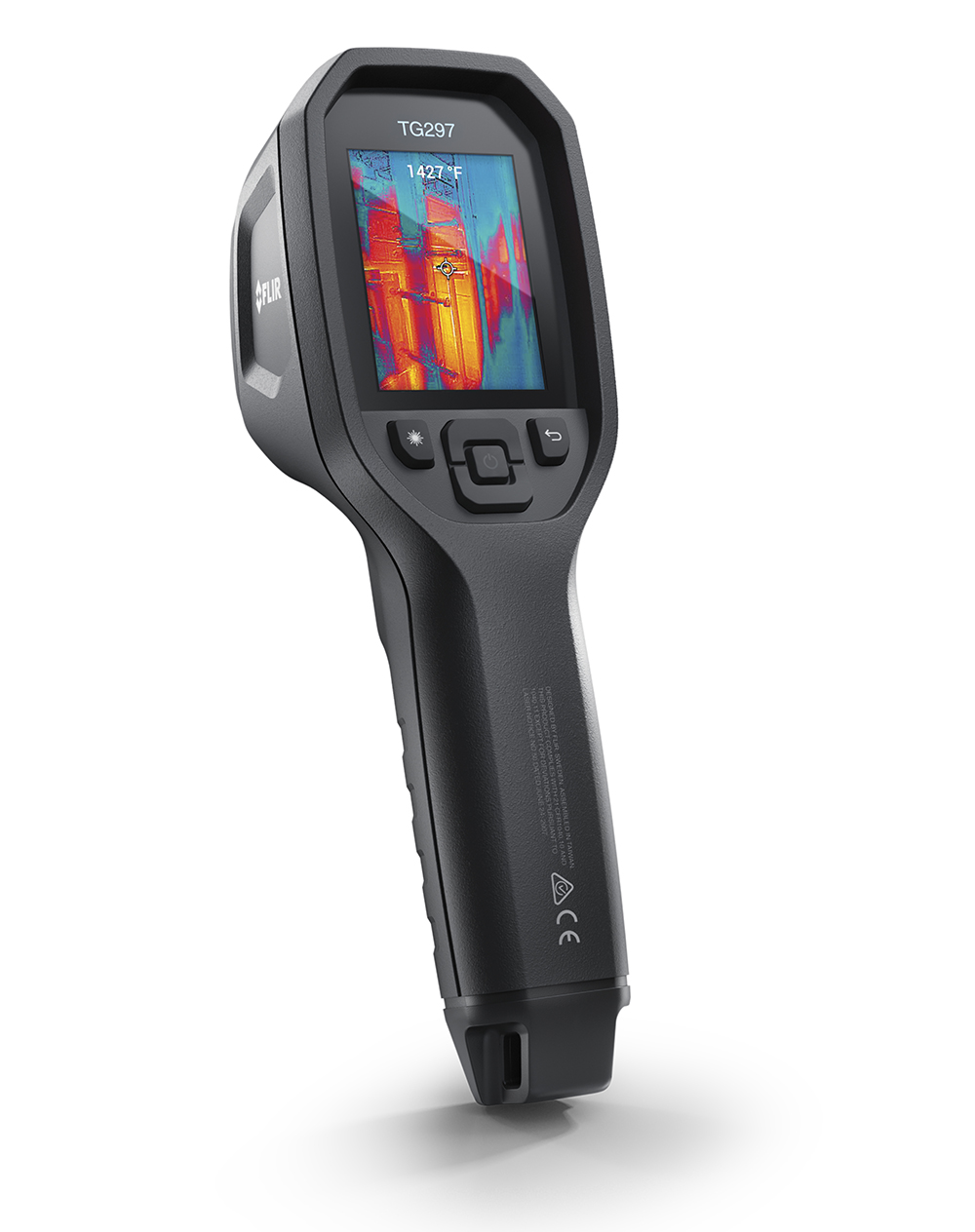

FLIR TG297 Industrial High Temp Spot Thermal Camera 160 x 120 Resolution/9Hz

The FLIR TG297 combines accurate temperature measurement with the ability to image up to 1030°C (1886°F). FLIR MSX enhancement improves image clarity by embossing visual scene details on full thermal images. The FLIR TG297 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, and forges as well as manufacturing applications, allowing you to accurately target potential faults, troubleshoot repairs, and monitor processes. Record images to assure that machinery and systems are functioning safely and at peak efficiency.

Key Features

  • See beyond the limitations of single-spot IR thermometers with a 160 × 120 (19,200 pixel) true thermal imager.
  • FLIR patented MSX enhancement adds sharp visual detail to thermal images, making it easier to diagnose problems.
  • Measure a wide range of temperatures, from –25°C to 1030°C (–13°F to 1886°F).
  • Multipoint Laser pointer provides a circle to clearly show the area you are measuring.
  • Rugged and reliable with an IP54 enclosure that protects the camera from dirt, dust, and oil.
SKU: 87504-0404 Categories: ,


Technical Specifications

Imaging and optical data
IR resolution 160 × 120 pixels
Digital image enhancement Yes
Thermal sensitivity/NETD < 70 mK
Field of view (FOV) 57° × 44°
Minimum focus distance 0.3 m (0.98 ft.)
Distance to spot ratio 30:01:00
Pseudo dual range Range 1 < 400°C (< 752°F); Range 2 > 400°C (> 752°F)
Image frequency 8.7 Hz
Focus Fixed
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 12 μm
Image presentation
Display resolution 320 × 240 pixels
Surface brightness (cd/m2) 400
Screen size 2.4 in. portrait
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 04:03:00
Display technology TFT
Cover glass material Optical grade silicon
Image adjustment Automatic
Image modes MSX (Multi Spectral Dynamic Imaging)
Visual with temperature reading
Gallery Yes
Object temperature range –25 to 1030°C (–13 to 1886°F)
Object temperature range and accuracy(ambient temp. 15 to 35°C (59 to 95°F)) –25 to 0°C (–13 to 32°F), acc. ±3°C (±7°F)
0 to 50°C (32 to 122°F), acc. ±2.5°C (±5°F)
50 to 100°C (122 to 212°F), acc. ±1.5°C (±3°F)
100 to 500°C (212 to 932°F), acc. ±2.5%
500 to 1030°C (932 to 1886°F), acc. ±3%
IR temperature resolution 0.1℃ (0.2°F)
Repeatability of reading ±1% of reading or ±1℃ (2℉), whichever is greater
Response time 150 ms
IR thermometer measurement Continuous scanning
Minimum measurement distance 0.26 m (0.85 ft.)
Type-K range –30 to 390°C (–22 to 734°F) ± (1.0% + 3°C (+7°F))(kitted Type-K probe is up to 260°C (500°F))
Maximum voltage at thermocouple input 60V DC or 24Vrms AC
